Summit White

Jet Black

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, DURAMAX 3.0L TURBO-DIESEL I6 (277 hp [206.6 kW] @ 3750 rpm, 460 lb-ft of torque [623.7 N-m] @ 1500 rpm) Includes (KW5) 220-amp alternator and (K05) engine block heater.)

TRANSMISSION, 10-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking Most vehicles built on or after 6-7-2021 with a V8 engine and (MQB) 10-speed automatic transmission will have (NSS) Not Equipped with Automatic Stop/Start, which removes Automatic Stop/Start and its content.)

GVWR, 7200 LBS. (3266 KG)

REAR AXLE, 3.23 RATIO

RST PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 20" X 9" (50.8 CM X 22.9 CM) PAINTED ALUMINUM with machine face and Argent Metallic pockets

TIRES, 275/60R20SL ALL-TERRAIN, BLACKWALL (Includes (QAQ) spare tire.)

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 PLUS SYSTEM 8" diagonal HD color touchscreen, AM/FM stereo, Bluetooth audio streaming for 2 active devices, wireless Apple CarPlay and Android Auto capable, voice recognition, in-vehicle apps, cloud connected personalization for select infotainment and vehicle settings. Subscription required for enhanced and connected services after trial period.

ALL STAR EDITION PLUS includes (PCM) Convenience Package II and (RD4) 20" aluminum wheels with Argent metallic pockets

Z71 OFF-ROAD AND PROTECTION PACKAGE includes (Z71) Z71 Off-Road suspension, (JHD) Hill Descent Control, (NZZ) skid plates, (K47) heavy-duty air filter and Z71 hard badge Includes (WPQ) Protection Package and (AAK) All-weather Z71 floor liners, LPO.

CONVENIENCE PACKAGE II includes (UG1) Universal Home Remote, (A48) rear sliding power window, (KI4) 120-volt power outlet, (KC9) 120-volt bed-mounted power outlet, (IOS) Chevrolet Infotainment System with 8" diagonal color touch-screen with (MCR) USB ports, SiriusXM with 360L, (U2L) HD Radio and (UVB) HD Rear Vision Camera Includes (UQA) Bose Premium Sound System. Certain 21MY vehicles will include (RG0) Not Equipped with HD Radio, which removes (U2L) HD Radio. See dealer for details.)

Z71 OFF-ROAD PACKAGE includes (Z71) Off-Road suspension, (JHD) Hill Descent Control, (NZZ) skid plates and (K47) heavy-duty air filter Includes Z71 hard badge, (N10) dual exhaust, (PZX) 18" bright silver painted wheels, (XCK) 265/65R18 all-terrain, blackwall tires and (NQH) 2-speed transfer case.

BED PROTECTION PACKAGE includes (B1J) wheel house liners and (CGN) Chevytec spray-on bedliner

CONVENIENCE PACKAGE WITH BUCKET SEATS includes (A50) bucket seats, (D07) center console, (CJ2) dual-zone automatic climate control, (A2X) 10-way power driver seat including power lumbar, (KA1) heated driver and passenger seats, (KI3) heated steering wheel and (N37) manual tilt-telescoping steering column; Includes (R7O) Cloth Rear Seat with Storage Package and includes (SNR) Up-level Rear Seat with Storage Package.)

ENGINE BLOCK HEATER

HILL DESCENT CONTROL

TRANSFER CASE, TWO-SPEED electronic Autotrac with push button control

AIR FILTER, HEAVY-DUTY

TRAILER BRAKE CONTROLLER, INTEGRATED

SKID PLATES

EXHAUST, DUAL WITH POLISHED OUTLETS (STH) Rally Edition and (WGQ) Redline Edition includes Black exhaust tips.)

CHEVYTEC SPRAY-ON BEDLINER, BLACK WITH CHEVROLET LOGO (does not include spray-on liner on tailgate due to Black composite inner panel)

WHEELHOUSE LINERS, REAR

LICENSE PLATE KIT, FRONT

HD RADIO Certain 21MY vehicles will include (RG0) Not Equipped with HD Radio, which removes (U2L) HD Radio. See dealer for details.)

BOSE SOUND SYSTEM, PREMIUM 7-SPEAKER SYSTEM with Richbass woofer

CENTER CONSOLE, FLOOR-MOUNTED with cup holders, cell phone storage, power cord management, hanging file folder capability

LPO, ALL-WEATHER FLOOR LINERS, 1ST AND 2ND ROWS (includes Z71 logo on front mats),

WINDOW, POWER, REAR SLIDING with rear defogger

UNIVERSAL HOME REMOTE

POWER OUTLET, INSTRUMENT PANEL, 120-VOLT (400 watts shared with (KC9) bed mounted power outlet)

USB PORTS (INSIDE CONSOLE WITH BUCKET SEATS), 2 also includes 1 SD card reader and auxiliary jack

POWER OUTLET, BED MOUNTED, 120-VOLT (400 watts shared with (KI4) instrument panel mounted power outlet)

HD REAR VISION CAMERA

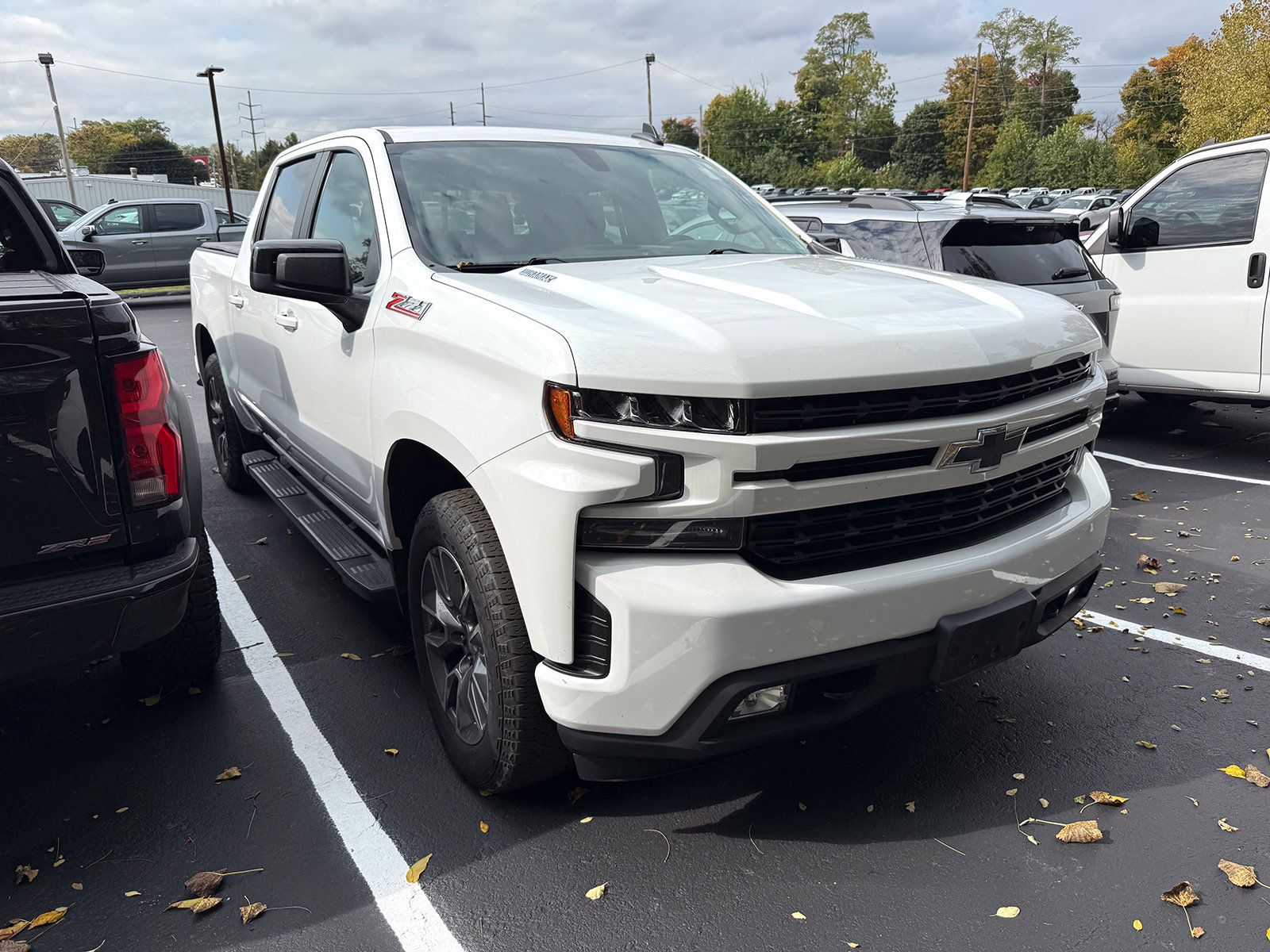

Vehicle Name - Chevrolet Silverado 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - 3800

Gross Axle Wt Rating - Rear (lbs) - 4150

Curb Weight - Front (lbs) - 2839

Curb Weight - Rear (lbs) - 1976

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 20

Tons/yr of CO2 Emissions @ 15K mi/year - 11.0

Gross Vehicle Weight Rating Cap (lbs) - 7200

Gross Combined Wt Rating (lbs) - 15000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 900

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 7700

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 1925

Maximum Trailering Capacity (lbs) - 11900

Engine Type - Turbocharged Diesel I6

Fuel System - Direct Injection

Engine Order Code - LM2

Displacement - 3.0L/183

SAE Net Horsepower @ RPM - 277 @ 3750

SAE Net Torque @ RPM - 460 @ 1500

Trans Order Code - MQB

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.8

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.86

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 850

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 170

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - - TBD -

Frame Type - Box Ladder

Suspension Type - Front - Independent

Suspension Type - Rear - Solid Axle

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - 50.0

Shock Absorber Diameter - Rear (mm) - 50.0

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QAE

Rear Tire Order Code - QAE

Spare Tire Order Code - QAQ

Front Tire Size - 275/60R20SL

Rear Tire Size - 275/60R20SL

Spare Tire Size - 255/80R17SL

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 20 x 9

Rear Wheel Size (in) - 20 x 9

Spare Wheel Size (in) - 17 x 8

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 46.9

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.5 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.16

Second Hip Room (in) - 60.24

Wheelbase (in) - 147.43

Length, Overall (in) - 231.7

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 75.51

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.09

Ground Clearance, Rear (in) - 8.09

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.2

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Trucks
